Ⅰ. General Description：
LU5T is a compact ultraviolet laser printer developed by CYCJET, specifically designed for food film packaging, aiming to replace traditional TTO technology. Its core highlight lies in its "small" size - compact body and exquisite structure. The compact size brings extremely high installation flexibility, which can be easily integrated into food film production lines, saving valuable space. At the same time, with excellent laser marking performance, clear, efficient, and permanent identification marking can be achieved, and the cost of ink and ribbon consumption can be saved for enterprises.

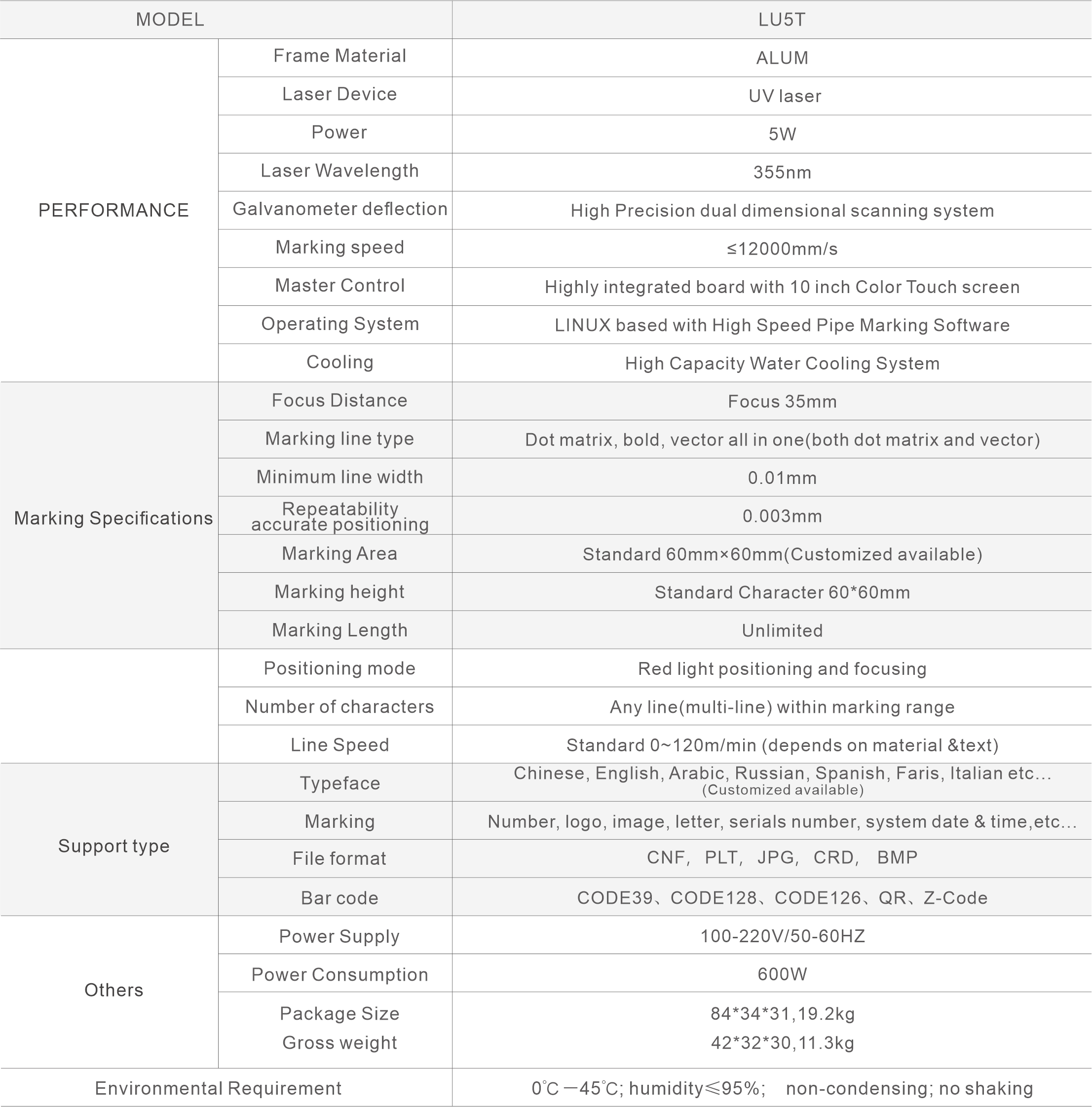

Ⅱ. Technical Parameters

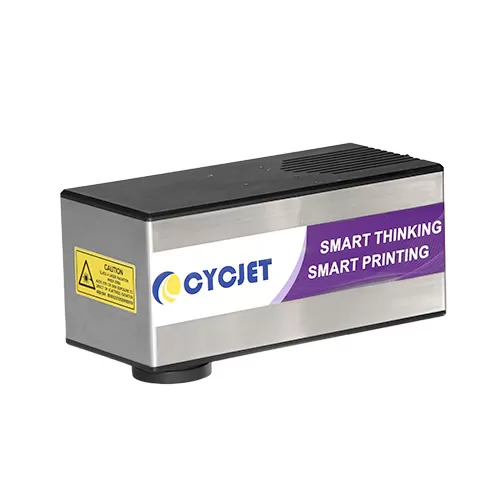

CYCJET LU5T UV Fly Laser Printer
MODEL | LU5T | |
PERFORMANCE | Frame Material | ALUM |
Laser Device | UV laser | |
Power | 5W | |
Laser Wavelength | 355nm | |
Galvanometer deflection | High Precision dual dimensional scanning system | |
Marking speed | ≤12000mm/s | |
Master Control | Highly integrated board with 10 inch Color Touch screen | |
Operating System | LINUX based with High Speed Pipe Marking Software | |
Cooling | High Capacity Water Cooling System | |
Marking Specifications | Focus Distance | Focus 40mm |
Marking line type | Dot matrix, bold, vector all in one (both dot matrix and vector) | |
Minimum line width | 0.01mm | |
Repeatability accurate positioning | 0.003mm | |
Marking Area | Standard 60mm×60mm (Customized available) | |
Marking height | Standard Character 60*60mm | |
Marking Length | Unlimited | |
Positioning mode | Red light positioning and focusing | |
Number of characters | Any line (multi-line) within marking range | |
Line Speed | Standard 0~120m/min (depends on material & text) | |
Support type | Typeface | Chinese, English, Arabic, Russian, Spanish, Faris, Italian etc... (Customized available) |
Marking | Number, logo, image, letter, serials number, system date & time, etc... | |
File format | CNF, PLT, JPG, CRD, BMP | |
Bar code | CODE39、CODE128、CODE126、QR、Z-Code | |
Others | Power Supply | 100-220V/50-60HZ |
Power Consumption | 600W | |
Package Size / Gross weight | 843431, 19.2kg / 423230, 11.3kg | |
Environmental Requirement | 0℃－45℃; humidity≤95%; non-condensing; no shaking | |
Ⅲ. Printing Show

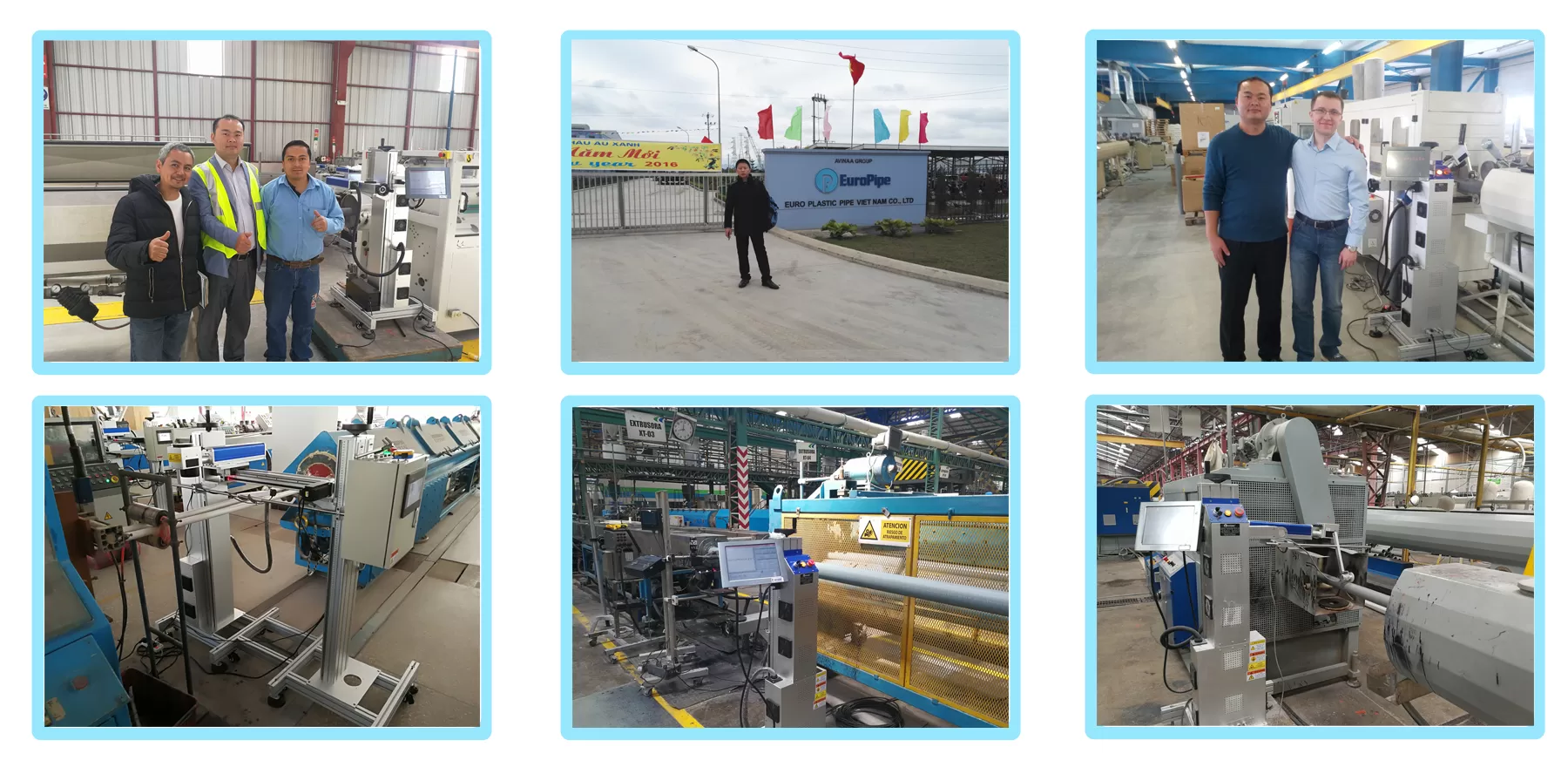

Ⅳ. CYCJET Laser Printer In The World
