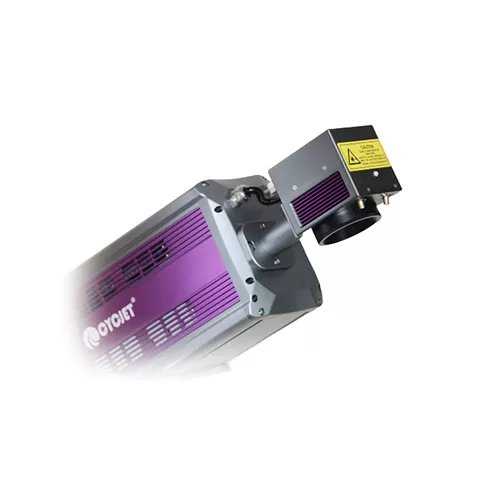

CYCJET LC series fly laser printer uses the US imported lasers, advanced polarizer system to ensure superior quality and high speed marking output. The entire laser system integrates a touch-screen interface, induction electric parts and lift the bracket. Sophisticated and compact design, it can be easily installed in tight spaces. LC series with high stability, reliability, mainly sued in chemical, food, beverage, pharmaceutical and other marking.
Ⅰ. General Description：
1. CYCJET CO2 Fly laser printing machine suitable for different package printing, such as PET water bottles printing, Pharmacy box printing, cosmetic package laser jet printer, wire & cable printing, and also can apply for electronic components, electrical products, IT industry, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking,etc.
2. Well designed software & High speed hardware support the high speed inline marking, up to 200m/min, based on different materials;

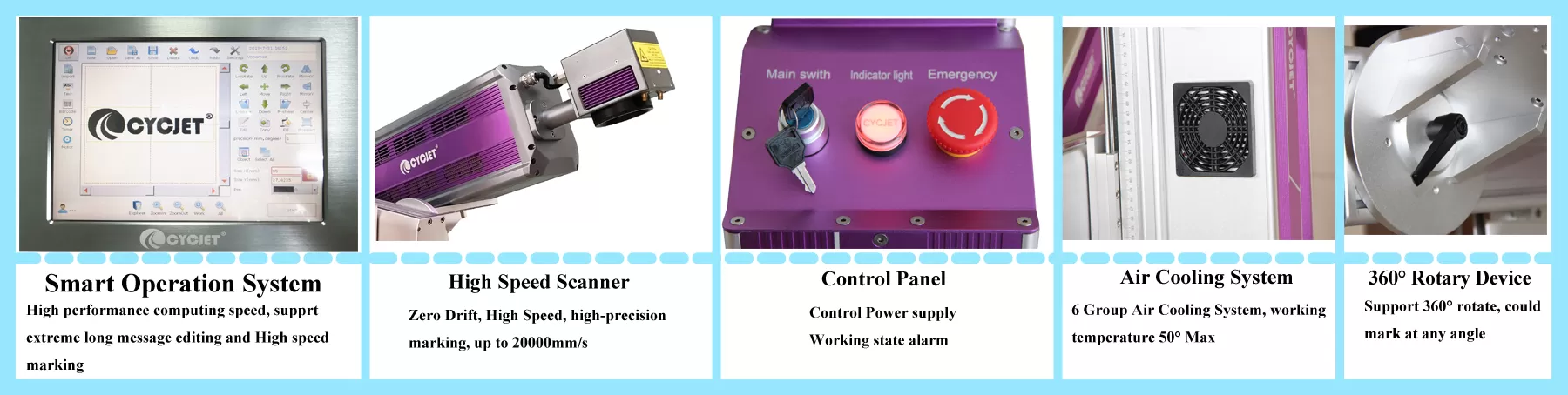

3. Friendly operate interface, easy to edit message set parameters for marking;
4. Multi-Functional application, support inline marking, stationary marking. Triggered by encoder, sensor, or closed signal from other equipment;
5. Flying laser marking machine could communicate with different equipment or platform by developed software, such as ERP system, Database, PLC etc;
6.Long lifetime;
7.Well design and production technology, high stability and less working failure;
8. Working State Alarm system;
9. Counting system;
10. Perfect cooling system, working temperature 0-50℃;
11. No consumer goods, less production cost;

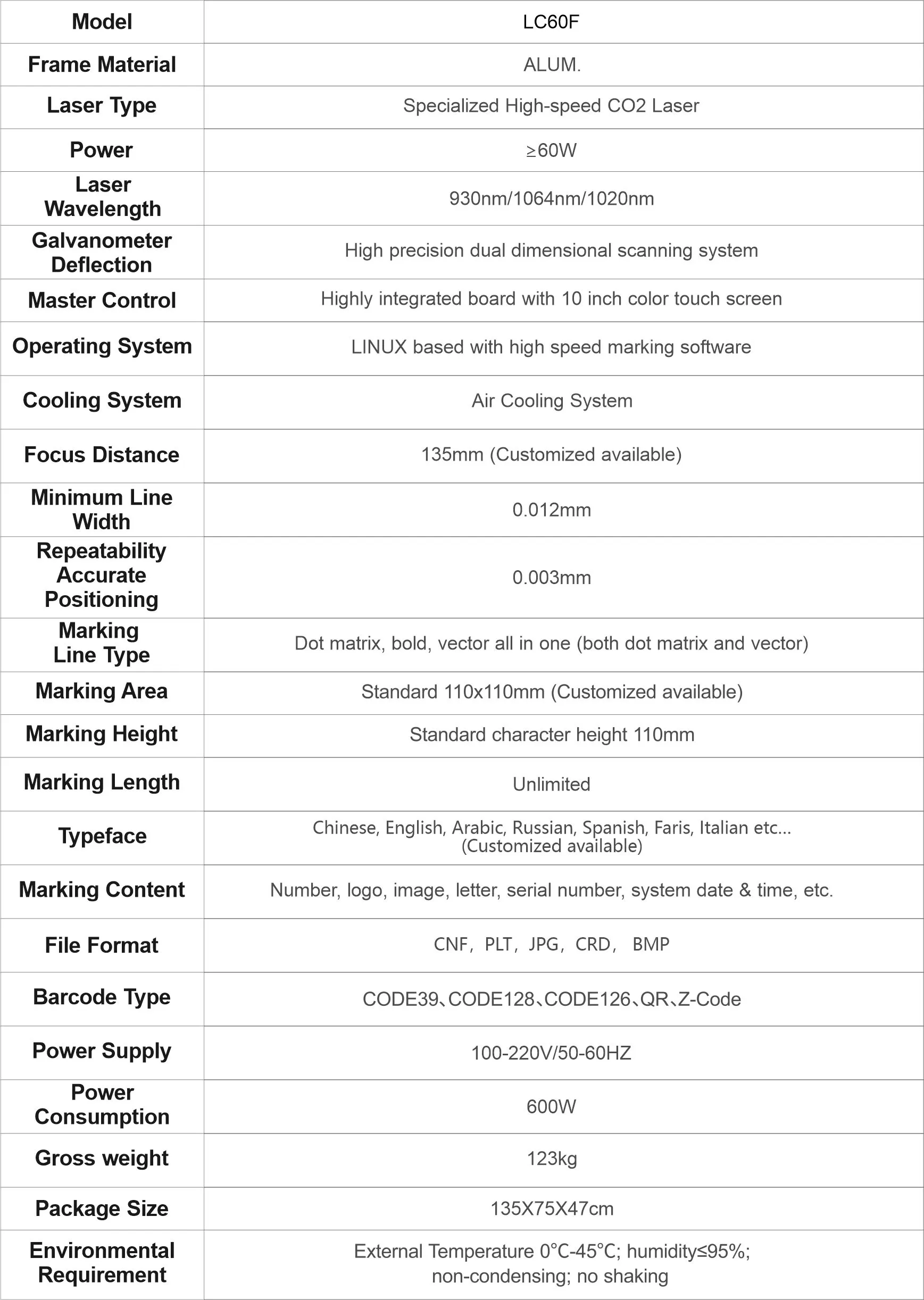

Ⅱ. Technical Parameters
Model | LC60F |
Frame Material | ALUM. |
Laser Type | Specialized High-speed CO2 Laser |
Power | ≥60W |
Laser Wavelength | 930nm/1064nm/1020nm |
Galvanometer Deflection | High precision dual dimensional scanning system |
Master Control | Highly integrated board with 10 inch color touch screen |
Operating System | LINUX based with high speed marking software |
Cooling System | Air Cooling System |
Focus Distance | 135mm (Customized available) |
Minimum Line Width | 0.012mm |
Repeatability Accurate Positioning | 0.003mm |
Marking Line Type | Dot matrix,bold,vector all in one (both dot matrix and vector) |
Marking Area | Standard 110x110mm (Customized available) |
Marking Height | Standard character height 110mm |
Marking Length | Unlimited |
Typeface | Chinese,English,Arabic,Russian,Spanish,Faris,Italian etc...(Customized available) |
Marking Content | Number,logo,image,letter,serial number,system date &time,etc. |
File Format | CNF,PLT,JPG,CRD,BMP |
Barcode Type | CODE39、CODE128、CODE126、QR、Z-Code |
Power Supply | 100-220V/50-60HZ |
Power Consumption | 600W |
Gross weight | 123kg |
Package Size | 135X75X47cm |
Environmental Requirement | External Temperature 0°C-45°C;humidity≤95%; non-condensing;no shaking |
Ⅲ. Printing Show

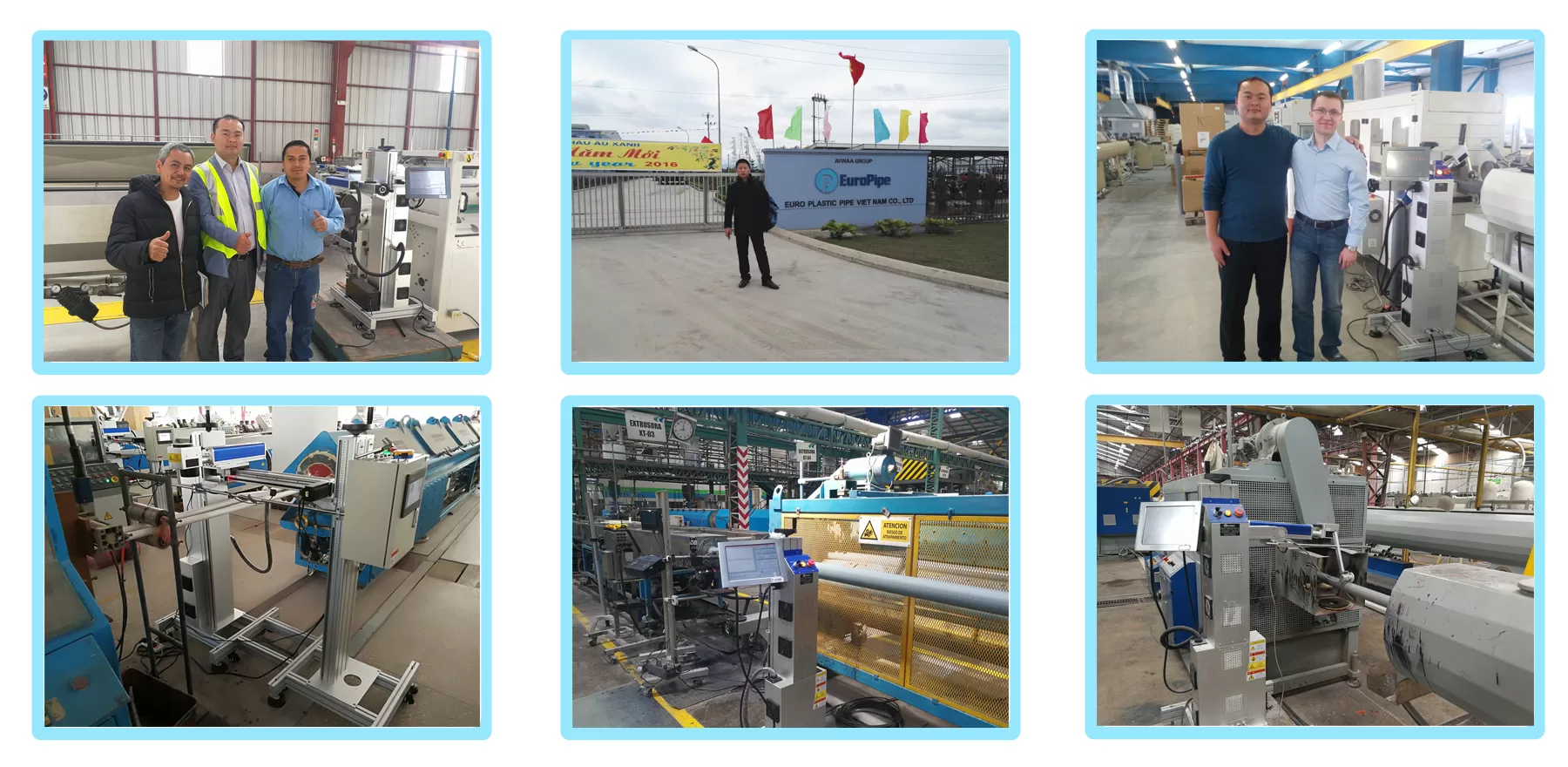

Ⅳ. CYCJET Laser Coding Machine In The World
