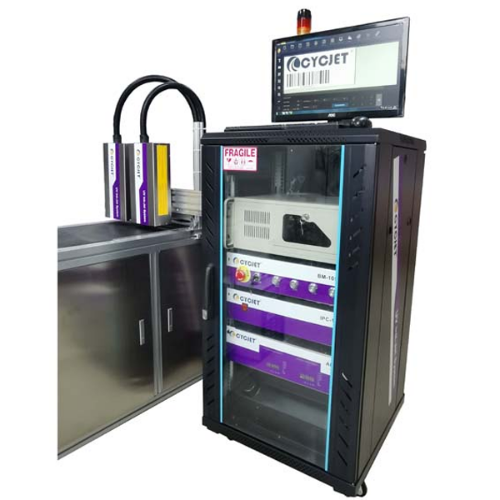

The ALT502UV High resolution industrial inkjet printer features two 600 DPI printheads,delivering Single Head 54mm Max 108mm(2 heads)print heights at speeds up to 150 m/min. Printheads install vertically or horizontally to adapt to various production line layouts.
Description
* ALT500UV high resolution inkjet printing system max can be in 4400dpi.
* Character direction: 90°, 180°, 270° rotation;
* High-Resolution LED display, max logo 4400*600dpi.
* No need connect PC, input message by keyboard directly;
Technicial Data
Model | ALT502 Multi Head System |
Max Printing Height | Single Head 54mm Max 108mm（2 heads） |
Max Resolution | 600DPI |
Printing Distance | 1-3mm |
Printing Speed | Max 150m/min |
Ink Type | UV ink,Oil ink |
Ink Supply Method | Negative Pressure &Siphon(Optional) |
Printing Direction | Vertical &Horizontal (Optional) |
External Interface | USB,Ethernet,RS232,Wifi |
Power Supply | 100-240V,50/60Hz |
Package Size | 78*100*134cm |
Gross weight | 222KG |
Printing Lines | Unlimited number of lines (maximum nozzle height range,arbitrary layout) |
Printing Contents | Variable and fixed text,pictures,PDF,Bar code,QR code,database,etc. |
Printing Fonts | Windows operating system fonts |
Transmission Interface | Gigabit network |
Printing Method | Single or continuous printing |
Ink Color | Black,white,red,blue,invisible ink,etc. |
Nozzle Cleaning | One-button automatic cleaning |
Application Images
